Especially in the winter months, in sunny times, it provides a warm amount and benefit from the sun`s rays.

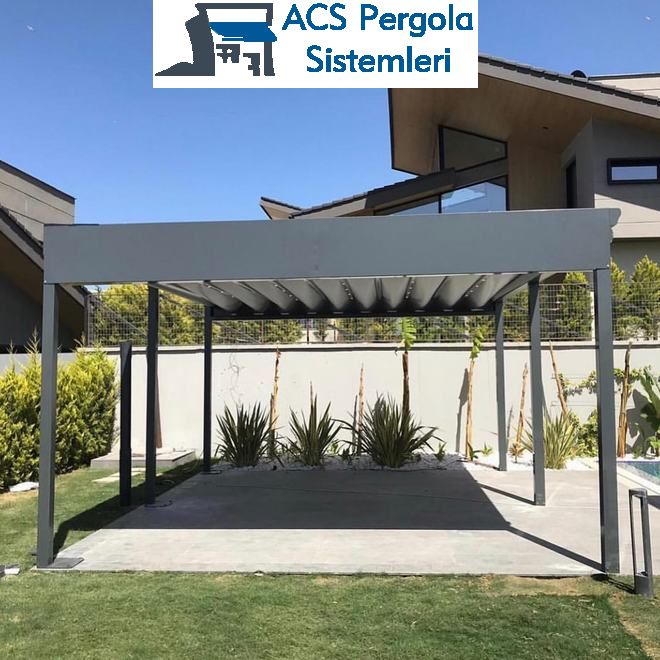

Rolling Roof Pergola
Especially in the winter months, in sunny times, it provides a warm amount and benefit from the sun's rays. Due to its openable feature in summer months, it provides the opportunity to benefit from the sun again. Tea gardens, hookah lounges, coffee houses, revolving saloons, restaurants and cafes choose this system.

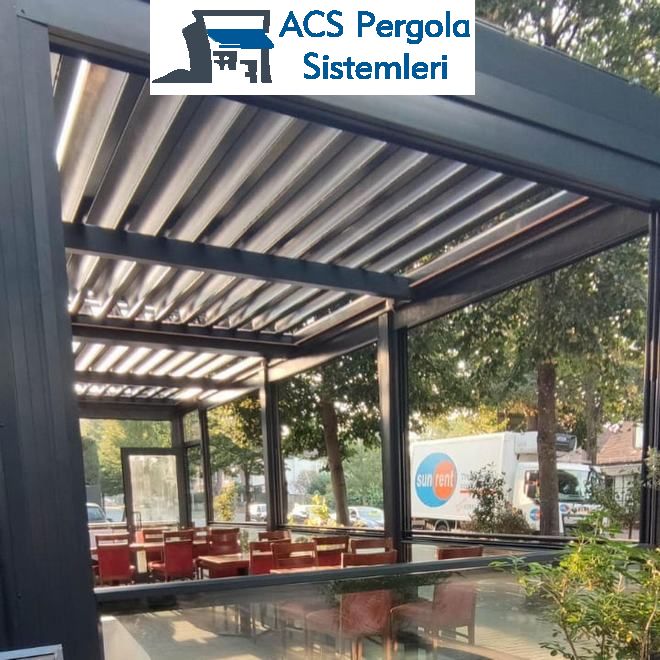

Rolling Roof Pergola
The rollimg roof system, which can be applied in any space, offers the folding and gathering movement together, which no sunroof system offers in the world. Thanks to the panels that can be opened at any angle, it provides the opportunity to benefit from daylight at the desired rate. And also thanks to the folding movement made by the panels, it does not lose its shading feature when ventilation from the roof. Even with the system open, it provides ventilation without being affected by rain and snow thanks to specially designed profiles. Thanks to the folding movement of the panels, the exterior cleaning of the panels can be cleaned from the inside without the need to go up to the roof. It is colored with electrostatic oven paint; It can be applied in any desired color. Thanks to electrostatic oven paint it is long-lasting. The Rolling roof is the best solution for places such as restaurants and cafes where the smoking ban is applied.
Features of Rolling Roof Pergola
The folding roof system, which can be applied in any space, offers the folding and gathering movement together, which no sunroof system offers in the world.
Thanks to the panels that can be opened at any angle, it provides the opportunity to benefit from daylight at the desired rate.
And also thanks to the folding movement made by the panels, it does not lose its shading feature when ventilation from the roof.
Even with the system open, it provides ventilation without being affected by rain and snow thanks to specially designed profiles.
Thanks to the folding movement of the panels, the exterior cleaning of the panels can be cleaned from the inside without the need to go up to the roof.
It is colored with electrostatic oven paint; It can be applied in any desired color.
Thanks to electrostatic oven paint it is long-lasting.
The folding roof is the best solution for places such as restaurants and cafes where the smoking ban is applied.
Rolling Roof Pergola Technical Specification
Aluminum profiles used in the system are 6063 – T6 F25 (7580 Briner Hardness).
All profiles come to the construction site with electrostatic oven painted and packaged.
All accessories come packaged as galvanized and electrostatic oven paints.
Moving roof cover is glass.
The panels operate axially and can be rolled back on demand. (This feature is important in that it can perform ventilation and shading at the same time.)
Panels can be opened axially at a minimum angle of 85 degrees. (It is important to cut off the sunlight from the facade.)
The groove detail should be aluminum and should be on the outer surface of the system to prevent water return when the water drains are blocked.
The opening-closing movement of the ceiling cover should be provided by remote control.
It must be integrated with the automation system to prevent misuse. (Mechanical limit switches cause problems in this regard)
The system to be used should be designed and manufactured in accordance with all seasonal conditions.
The timing belt should provide power transmission between the engine and the moving mechanism and should be adjustable.
Vertical carrier profiles should be aluminum. In order to keep the application to the floor hidden and to protect the floor insulation, it should consist of two parts, the main carrier and the cover.
Flange application screws must be M8 * 80 Buldeks or M880 Lined steel dowel and galvanized coating. (In order not to damage the floor insulation.)
The rovings to be used in the system must be EPDM.
The silicones to be used must be neutral silicones.
Montage crews must be the company’s own, salaried, insured team.
The system to be used must have a 5-year motor and 2-year mechanical warranty.
Each system module consists of vertical and horizontal carrier profiles. Vertical main carriers should be 1001503 and horizontal main carriers should be 100150 * 3 mm.
System modules must have static properties to meet 50kg + 25kg/m² distributed load and 50kg/m² wind load.
Special panels used in system modules are designed to perform ventilation in rainy weather and must have rain mode in control.
Axial movement and gathering back of aluminum panels in the system should be done with separate motors.
